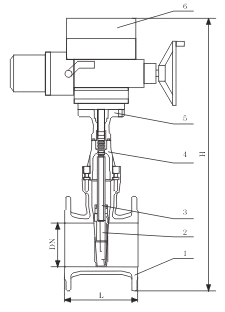

No.

Part

Material

1

Body

Cast Iron / Ductile Iron / Cast Steel

2

Disc

Ductile Iron with rubber or EPDM

3

Stem

Stainless Steel

4

Cover

Cast Iron / Ductile Iron / Cast Steel

5

Support

Cast Iron / Ductile Iron / Cast Steel

6

Electrical Acuator

div.

Dimensions/Size (mm)

DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

178

190

203

229

254

267

292

330

356

381

406

432

457

508

H

732

773

820

870

915

1003

1110

1263

1360

1550

1610

1900

1938

2120
