1. Suitable for water and neutral liquids (sewage).
2. Working temperature up to 70°C.
3. Test conform to EN 12266.
4. Flanges and drilling acc. to EN 1092-2.
5. Fully corrosion resistant constructions.
6. Inside and outside fusion bonded epoxy coatings.
7. EPDM gaskets.
8. vibration absorption, end movements and angular deflection +/-8 degree.

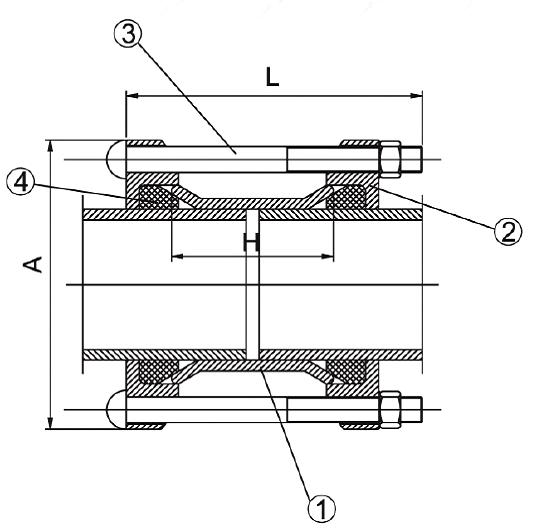

PIPE

RANGE

BOLT

A

H

WEIGHT

Norm

L

QITY

MM

MM

KGS

DN50

59-72

M12x180

2

165

98

3.00

DN65

72-85

M12x180

2

185

98

4.00

DN80

88-103

M12x180

4

185

98

4.10

DN100

109-128

M12x180

4

208

98

4.80

DN125

132-146

M12x200

4

250

98

6.30

DN150

159-182

M12x200

4

272

98

7.20

DN175

192-210

M12x220

4

312

135

12.00

DN200

218-235

M12x220

4

335

135

12.50

DN250

272-289

M12x220

6

405

135

19.00

DN300

315-332

M12x220

8

460

135

22.00

DN300

322-339

M12x200

6

435

102

20.40

DN300

340-360

M12x240

6

455

102

22.00

DN300

357-368

M12x240

8

510

130

31.90

DN350

374-391

M16x240

8

510

130

33.00

DN400

400-429

M16x240

8

489

130

38.50

DN450

418-435

M16x240

8

580

130

39.60

DN400

425-442

M16x240

8

580

130

40.70

DN450

455-472

M16x240

10

715

130

45.10

DN450

476-493

M16x240

10

640

130

47.30

DN500

527-544

M16x240

10

690

130

53.90

DN500

555-572

M16x240

10

715

130

55.00

DN500

566-583

M16x240

10

715

130

55.00

DN500

582-599

M16x240

10

715

130

57.20

DN600

600-630

M16x260

10

790

130

71.50

DN600

662-679

M16x260

10

840

130

77.00
