- Suitable for water and neutral liquids (sewage).
- Working temperature up to 70°C.
- Test conform to EN 12266.
- Flanges and drilling acc. to EN 1092-2.
- Fully corrosion resistant constructions.
- Inside and outside fusion bonded epoxy coatings.
- EPDM gaskets.
- Angular deflection +/-3 degree:
|
|
|
|
|
|
|

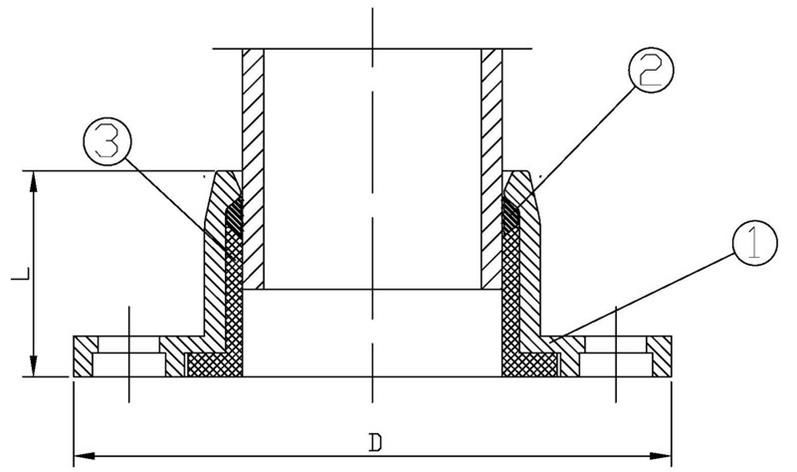

No.
|
Reference
|
Material
|
Standard
|
|
1
|
Body
|
Ductile Iron
|
EN 1563
|
|
2
|
Ring
|
Brass
|
|
|
3
|
Rubber
|
EPDM
|
EN 681
|
|
|
|
NBR
|
EN 682
|
|
|
|
|
|
|
PN 10 / PN 16
|
|
|
|
|
|
SIZE
|
PIPE OD
|
L
|
D
|
Weight (Kg)
|
|
DN 50
|
63
|
55
|
183
|
2,23
|
|
DN 60/65
|
75
|
58
|
183
|
2,56
|
|
DN 80
|
90
|
60
|
200
|
3,26
|
|
DN 100
|
110
|
68
|
220
|
4,1
|
|
DN 125
|
125
|
70
|
250
|
4,8
|
|
DN 125
|
140
|
75
|
250
|
4,75
|
|
DN 150
|
160
|
80
|
283
|
6,45
|
|
DN 200
|
200
|
93
|
340
|
7,5
|
|
DN 250
|
250
|
75
|
340
|
13,5
|
|
DN 300
|
315
|
100
|
455
|
14
|
|
|
|
|
