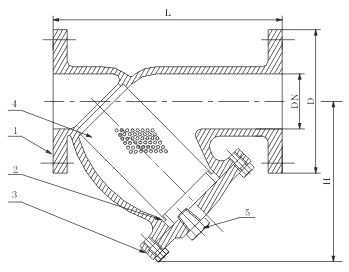

Components
|
|
1
|
Body
|
Cast Iron or Ductile Iron
|
|
2
|
Plug
|
Cast Iron or Ductile Iron
|
|
3
|
Cover
|
Cast Iron or Ductile Iron
|
|
4
|
Screen
|
Stainless Steel
|
|
5
|
Bolt
|
Carbon Steel
|
|
|
|
|
|
Application
|
|
1
|
Face to face according to ANSI 125/150
|
|
2
|
Flange drilled according to ANSI B16.1/B16.5
|
|
3
|
Class 125: Flate face Flange
|
|
4
|
Class 150: Raised face Flange
|
|
|
|
|
|
Test
|
|
Working Pressure
|
125 PCS
|
150 PSI
|
|
Shell Pressure
|
300 PSI
|
300 PSI
|
|
Seat Pressure
|
200 PSI
|
200 PSI
|
|
|
|
|
|
Dimensions/Sizes (mm)
|
|
DN
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
L
|
225,4
|
273
|
292
|
352,4
|
420
|
470
|
543
|
660,4
|
762
|
|
H
|
120
|
140
|
170
|
220
|
260
|
300
|
360
|
440
|
525
|
|
D
|
152
|
178
|
191
|
229
|
254
|
279
|
343
|
406
|
483
|
|
|
|
|
