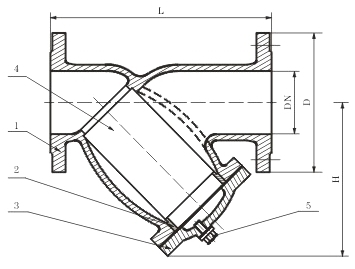

Components
|
|
1
|
Body
|
Cast Iron or Ductile Iron
|
|
2
|
Plug
|
Cast Iron or Ductile Iron
|
|
3
|
Cover
|
Cast Iron or Ductile Iron
|
|
4
|
Screen
|
Stainless Steel
|
|
5
|
Bolt
|
Carbon Steel
|
|
|
|
|
|
Application
|
|
1
|
Face to face according to BS 2080
|
|
2
|
Flange drilled according to BS 4504
|
|
|
|
|
|
Test
|
|
Working Pressure
|
PN10
|
PN16
|
|
Shell Pressure
|
15 Bars
|
24 Bars
|
|
Seat Pressure
|
11 Bars
|
17,6 Bars
|
|
|
|
|
|
Dimensions/Sizes (mm)
|
|
DN
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
L
|
220
|
270
|
290
|
350
|
390
|
440
|
540
|
660
|
720
|
|
H
|
120
|
140
|
170
|
220
|
260
|
300
|
360
|
440
|
525
|
|
D
|
165
|
185
|
200
|
220
|
250
|
285
|
340
|
405
|
460
|
|
|
|
|
