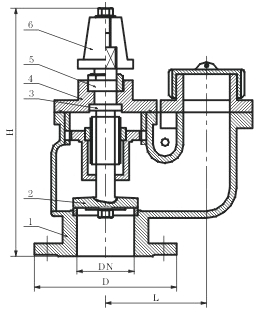

Components

1

Body

Cast Iron or Ductile Iron

2

Disc

Cast Iron or Ductile Iron

3

Stem

Stainless Steel

4

Bonnet

Cast Iron or Ductile Iron

5

Bonnet Nut

Brass or Gunmetal

6

Operative

Cast Iron or Ductile Iron

Application

1

Face to face according to BS 750

2

Flange drilled according to BS 4504

Test

Working Pressure

PN16

Shell Pressure

24 Bars

Seat Pressure

17,6 Bars

Dimensions/Size (inch)

DN

D

k

g

L

H

3”

7.7/8”

6.5/16”

5.7/16”

5.9/16”

14.11/16”
